Push Benchling Request Notification to Slack

Create a simple event based integration with Benchling!

Overview

A guide to a serverless integration using AWS services to connect Benchling Requests Application with your Slack Workspace. This integration will use the Benchling Events Framework to post a notification of a newly created Benchling Request to a Slack channel.

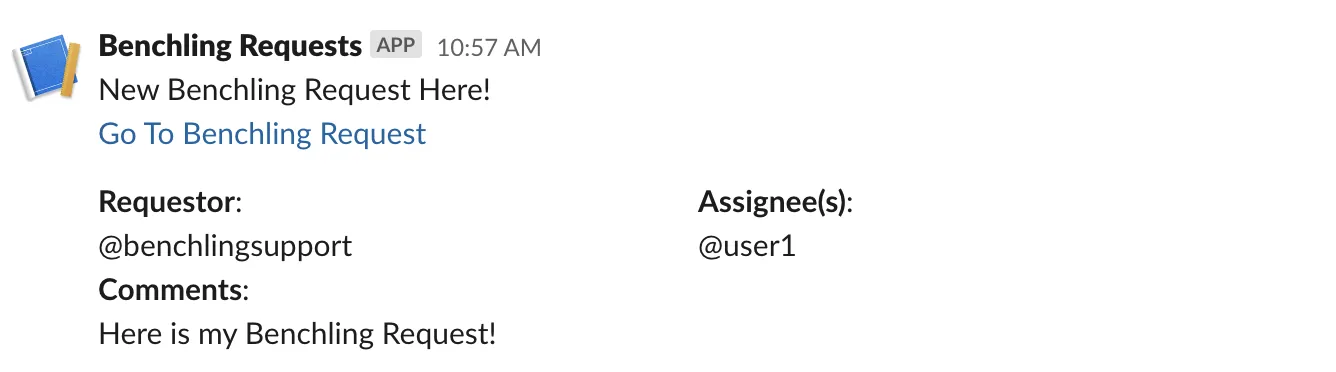

Final Slack NotificationFinal Slack Notification

Final Slack Notification

High Level Integration Flow

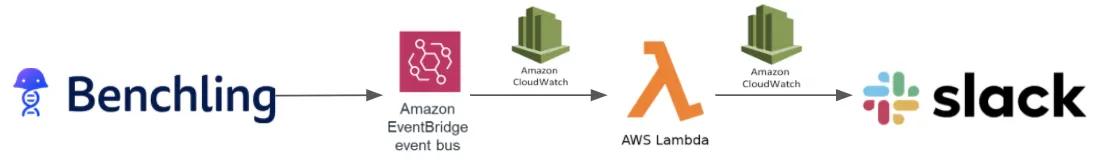

The Integration FlowThe Integration Flow

The Integration Flow

Benchling Requests: A single system for request submission and fulfillment and an integrated part of Benchling Platform.
AWS EventBridge: Benchling events currently can only be received through AWS EventBridge Partner Event Sources.
AWS Lambda: AWS lambda is a serverless compute service that runs your code in response to events such as EventBridge partner events and automatically manages the underlying compute resources for you.
AWS Cloudwatch: AWS CloudWatch monitors your Amazon Web Services (AWS) resources and the applications you run on AWS in real time, essentially built in logs.
Slack: Cloud-based team collaboration tool commonly used to simplify internal communication in order to increase efficiency.

Prerequisites

  1. AWS Account with access to AWS EventBridge, AWS Lambda, AWS CloudWatch
  2. Benchling Events Framework Enabled
  3. Slack Workspace with Admin permissions to create a Slack App

Benchling Configurations

Benchling Request

Let’s start by configuring a simple Benchling Request within Benchling’s Admin Request Settings. Refer to the help article for details on configuring a new Request Schema.

For this example use the below JSON to configure a Benchling Request Schema with an optional field “Request Comments”.

 {
    "fields": [
        {
            "isMulti": false,
            "type": "text",
            "displayName": "Request Comments",
            "name": "request_comments",
            "isRequired": false
        }
    ],
    "idPrefix": "SR",
    "taskSchemas": []
}

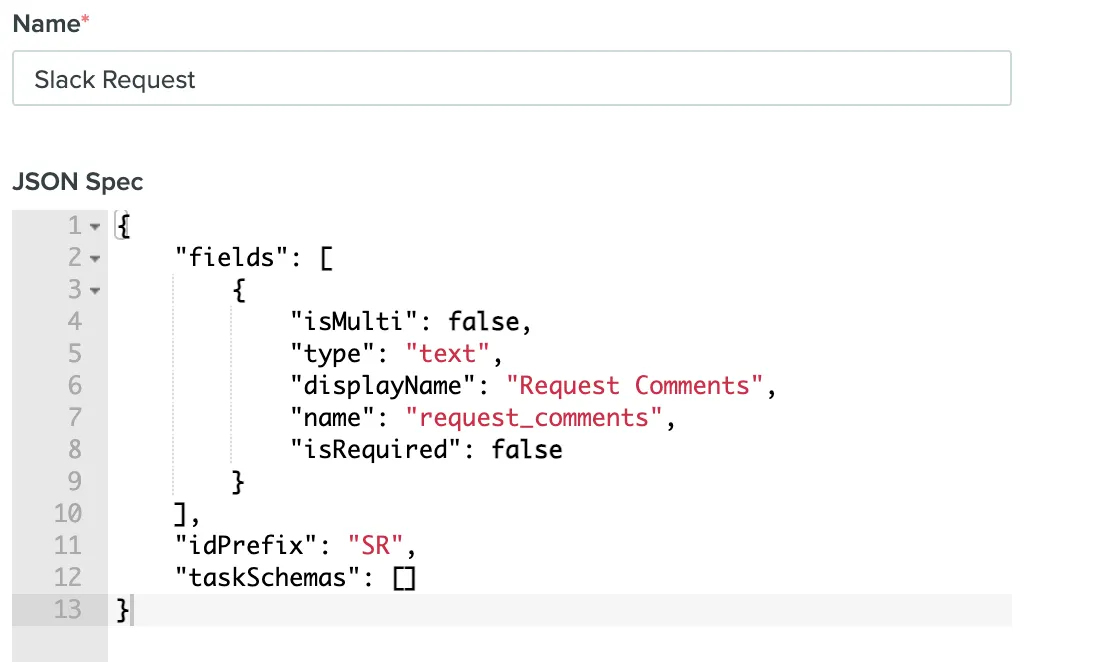

Request Schema ConfigurationRequest Schema Configuration

Request Schema Configuration

Benchling Events

Benchling’s Events Configuration is part of the Benchling Developer Console and needs to be enabled by a Benchling Admin. Please reach out to your Benchling Contact to get access to this functionality.

Next, before continuing, follow the Events Getting Started Guide to subscribe to the v2.request.created event.

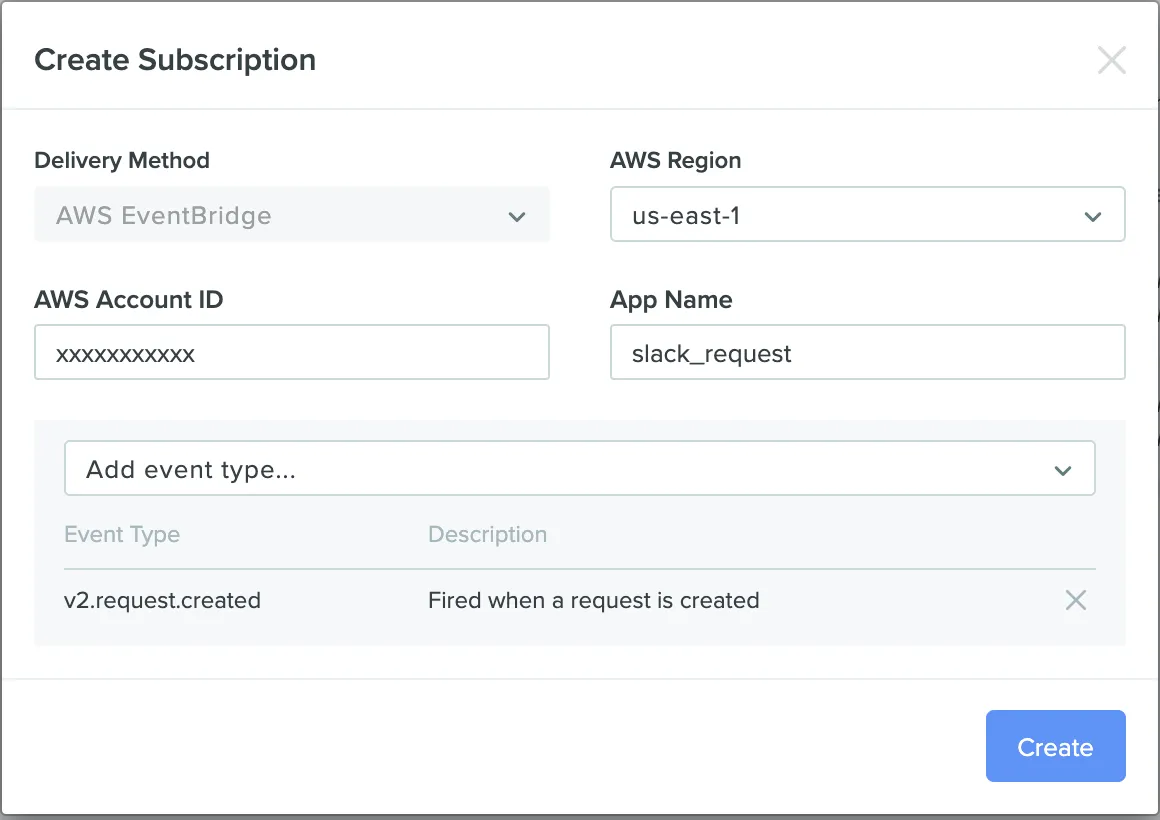

Create an Event Subscription in BenchlingCreate an Event Subscription in Benchling

Create an Event Subscription in Benchling


AWS EventBridge

After activating your event bus in the linked AWS account, set the following AWS EventBridge event rule pattern to route the v2.request.created event:

🚧

Associate the Event Rule to the correct Event Bus

Make sure to select the Benchling event bus you activated from the available event buses dropdown, before creating a new rule. AWS will have a default event bus pre-selected which is not the correct event bus.

{
  "detail-type": [
    "v2.request.created"
  ]
}

*Note: If you have other requests configured in Benchling the rule above will apply to all requests, you can add additional fields to the event rule to filter on a specific request.

For example:

{
  "detail-type": [
    "v2.request.created"
  ],
  "detail": {
    "schema": {
      "name": ["Slack Request"]
    }
  }
}

Add a CloudWatch Log group target for the event rule to confirm you are able to receive events when a request is created.

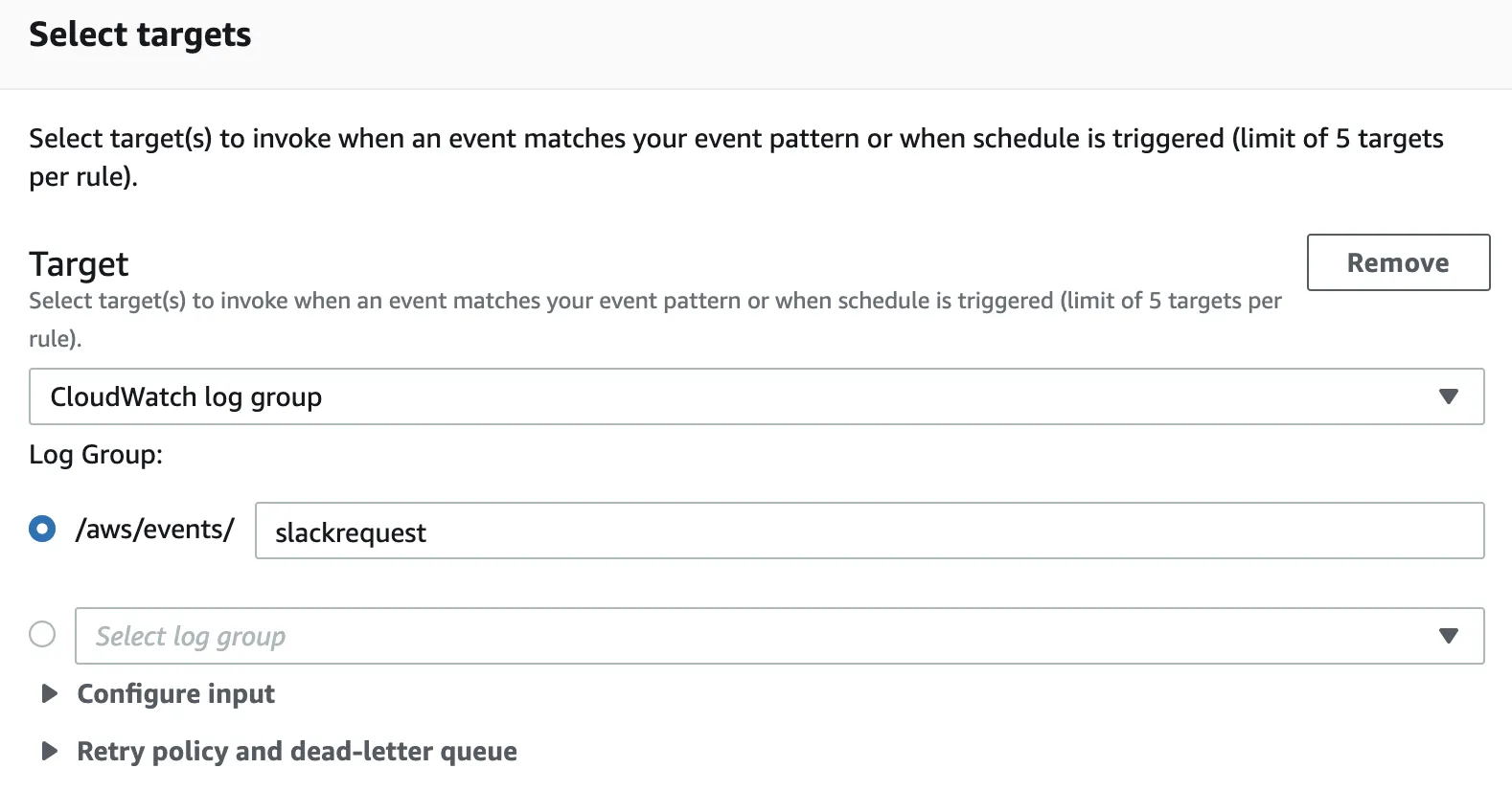

Cloudwatch Log GroupCloudwatch Log Group

Cloudwatch Log Group

Create a new request in Benchling, and check the CloudWatch log group to confirm you are able to receive the event in your AWS environment.


Slack Configuration

Now we can configure our Slack workspace to receive messages via a webhook URL. From the setup we will need the Slack authentication Token and a Webhook URL for our Lambda function.

  1. Go to https://api.slack.com/apps/ and create a new app in your workspace.
  2. Go to Incoming Webhooks and activate it and create a webhook URL in the Slack channel you would like to receive the messages.
    1. Save the Webhook URL that is generated.
  3. Go into the app settings. Find the OAuth & Permissions options under Features, and save the access token.

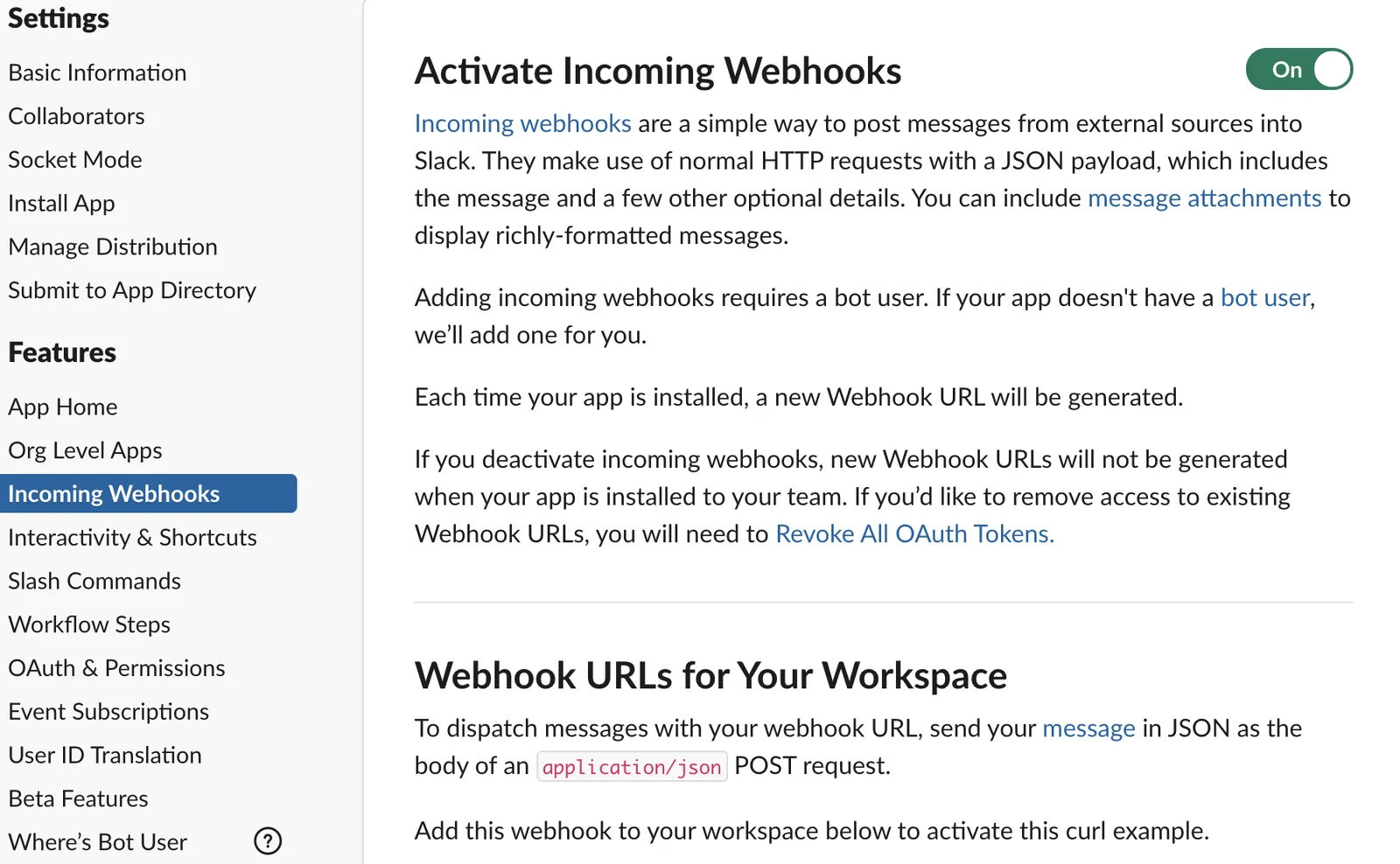

Activate Incoming Webhooks in Slack App SettingsActivate Incoming Webhooks in Slack App Settings

Activate Incoming Webhooks in Slack App Settings

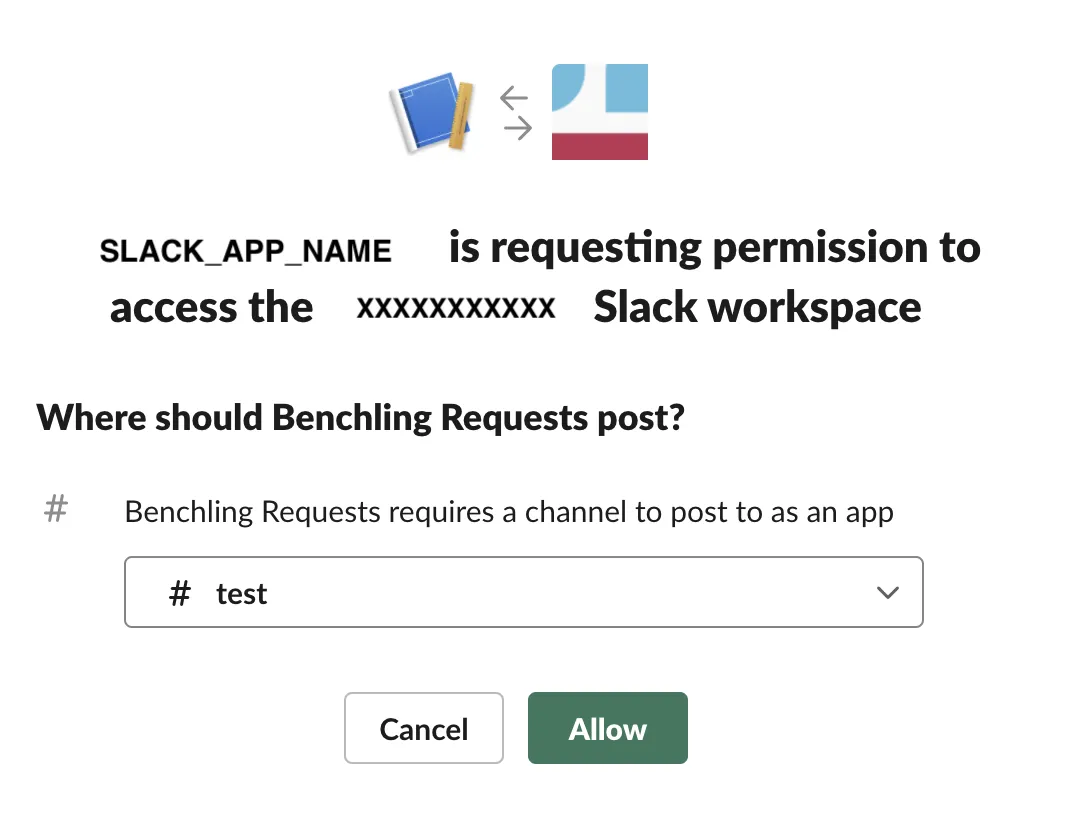

Allow permission to post in Slack ChannelAllow permission to post in Slack Channel

Allow permission to post in Slack Channel

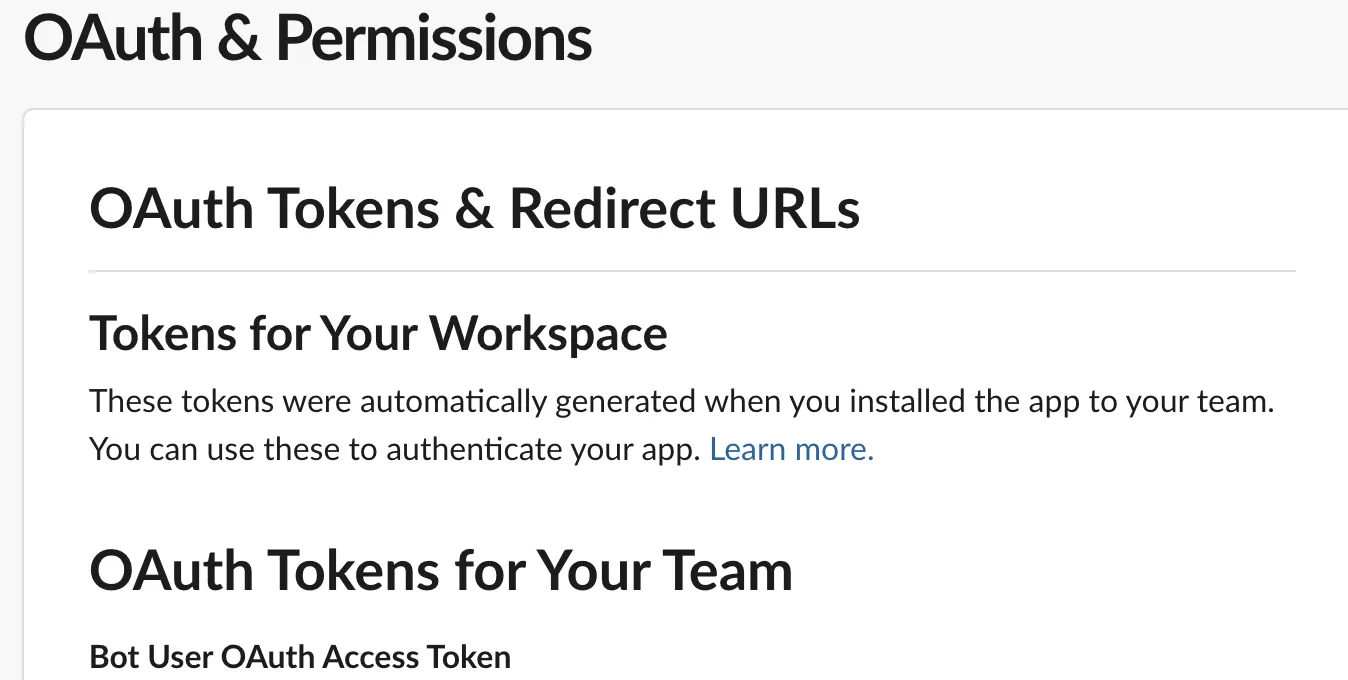

Extract Oauth TokenExtract Oauth Token

Extract Oauth Token

Remember the Webhook URL and Slack token will be referenced in our Lambda function.


AWS Lambda

In same AWS account and region that you set up your Event Bridge Rule, author a new Lambda function from scratch and select latest Python runtime.

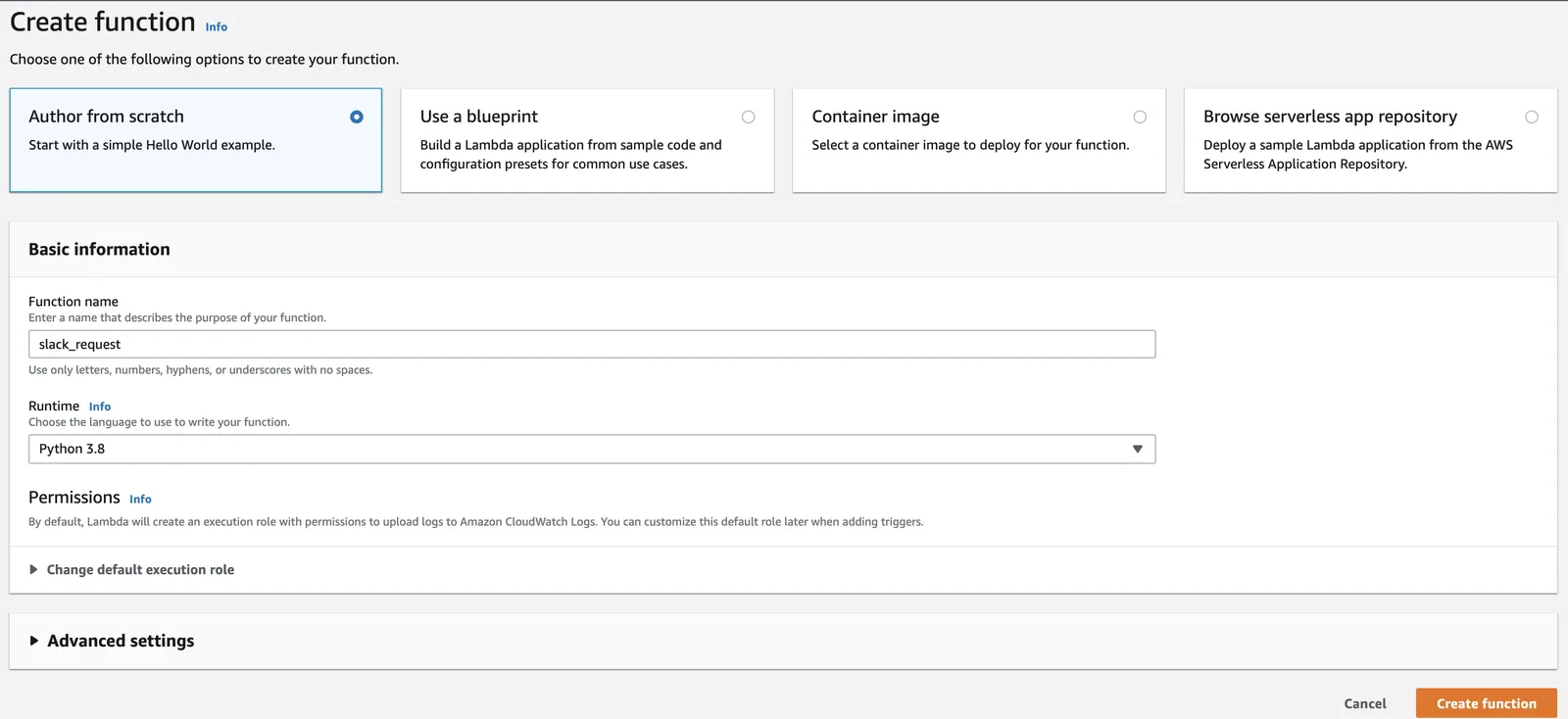

Author a new Lambda Function in PythonAuthor a new Lambda Function in Python

Author a new Lambda Function in Python

In the Lambda code editor paste the lambda_function.py file available in public Benchling Integration Examples Github repository.

Create the environment variables referenced in the code, and enter the values from your Slack App settings.

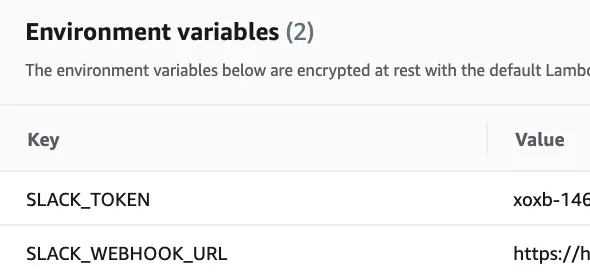

Lambda Function Environment VariablesLambda Function Environment Variables

Lambda Function Environment Variables

You can leave the remaining basic Lambda settings or adjust appropriately based on the usage of the function. Deploy your Function.

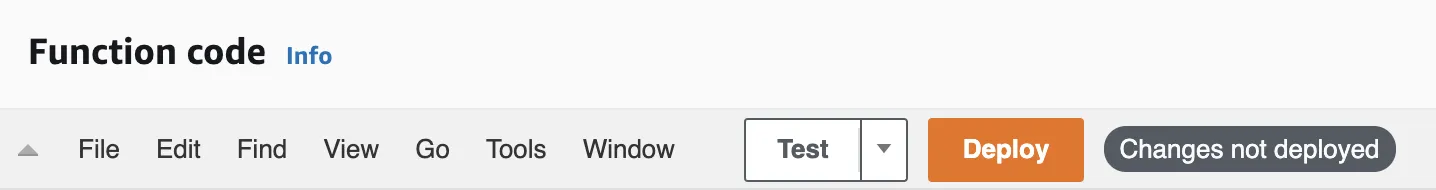

Deploy Lambda FunctionDeploy Lambda Function

Deploy Lambda Function

Final step is to connect your EventBridge Rule to your deployed Lambda function.

Two ways you can do this from the AWS console:

  1. Directly in the Lambda settings you can Add a trigger for the Lambda function. Use the dropdown to select AWS EventBridge and use the existing rule that we set up.

  2. Navigate back to EventBridge Rule and edit the rule. You can now add an additional target similar to how we set up the Log Group. Select AWS Lambda in the dropdown options. The Lambda function that was deployed should be available. Don’t forget to update the rule settings after adding the target.

Either of the above options will set up a trigger for your Lambda function as seen below:

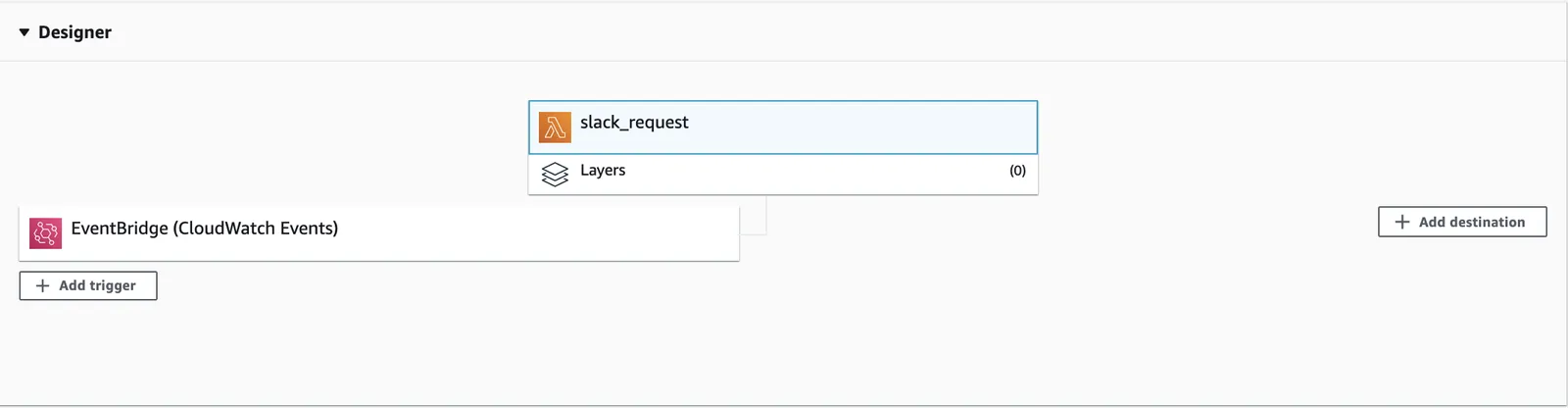

Trigger Lambda Function upon event deliveryTrigger Lambda Function upon event delivery

Trigger Lambda Function upon event delivery

🎊 Log into your Benchling account and create a Benchling Request to see the notification posted to the Slack channel! 🎊
